Automatic Folder Gluer Machine
Release Time:2017/08/29 14:20:17   Browse:th

Automatic Folder Gluer Machine


Machine Features：
 The automatic folder gluer machine is composed of three parts: the vacuum feeding part, the gluing folding part and the counting heap output part. Digital display control, PLC computer amplitude modulation, dual frequency conversion synchronous operation, with simple and fast reliable and accurate control mode. Automatic feed paper, automatic adhesive folding, automatic counting, automatic stacking output, average sticky box speed of 140 m/min, high speed energy saving, saving labor cost.

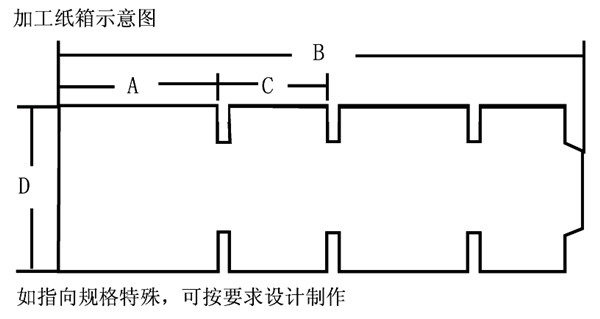

Paper Parameters:


Automatic Folder Gluer Machine


Model

2800

A (mm)

130-880

B (mm)

420-2500

C (mm)

70-840

D (mm)

170-1200

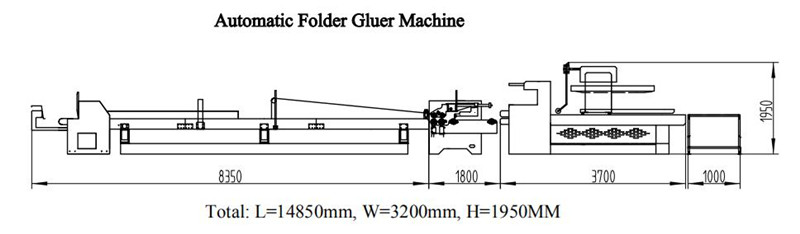

Install Size(mm)

4000×15000

Motor Power(KW)

12KW

Weight (T)

5.5

Speed

200m/min


Automatic Folder Gluer Machine
