►With automatic zero setting and reset function;
►Side to side oscillation of anvil drum(45mm).

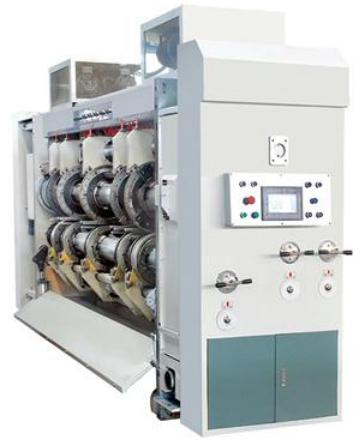

Printing Unit：
►Printing register is digitally controlled by motor and PLC.
►Transverse register is also digital controlled by motor and PLC ±10mm.
►Quick set and self locking pull collars.
►A fixed device of printing register and brake of electromagnetic clutch is used when the unit is opened.upon closing the unit,the positions are precisely restored so the unit is ready for production without adjustment.
►Cleaning function can be automatically switched to ensure the ink recycling thoroughly.

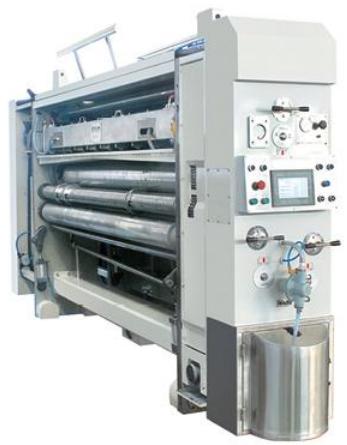

Slotting Unit：
►Single shaft five blades slotting ,an internal gear adjusts the height of the carton box and prevents the lubricating oil from spilling or leaking onto the cardboard.
►The first pre-creasing,the cardboard not be damaged after prepressing.
►Upper creasing roll covered by anvil ring,so cardboard is not damaged easily.
►Slotting bosses move along liner lead rails and are driven by lead screws for flexible and precise movement.
►Slotting register and height of carton box are digital controlled by motor and PLC.
►Transversal movement of the pre-creasing rolls,and slotting bosses’ are digital controlled by motor and PLC.

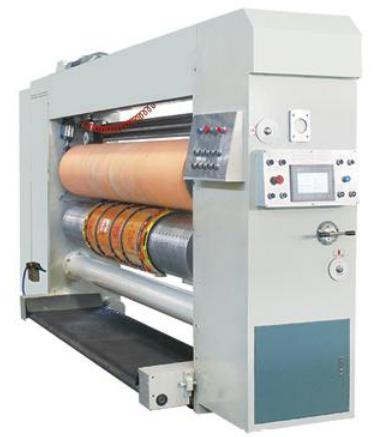

Die Cutting Unit:
►with separate servo motor.
►The die drum’s transverse movement can prolong the service life of anvil cover.
►Die-cutting register is digitally controlled by motor and PLC.
►The die-cut cylinder lateral register is digitally controlled by motor and PLC,rang about±10mm.
►Motorized caliper adjustment between anvil roll and die drum.
►Auto speed compensation system controlled by the independent motor can achieve the superb die accurac.
Technical Parameter:
|
Model |
920 |
1224 |
|
|
Max speed(pcs/min) |
250 |
180 |
|
|
Max paper feeding size(mm) |
900*2200 |
1200*2600 |
|
|
Max printing size(mm) |
900*2000 |
1200*2400 |
|
|
Min paper feeding size(mm) |
280*680 |
350*680 |
|
|
Max depth of slotting(mm) |
230 |
300 |
|
|
Die cutting precision(mm) |
≤±1.5mm |
||
|
Printing precision(mm) |
≤±0.4mm（4 color） |
||
|
Printing plate thickness(mm) |
7.2 |
||
|
Paper thickness(mm) |
2.5-12 |
||
|
Min slotting interval |
Normal |
160X160X160X160 |
|
|
Reverse |
300X60X300X60 |
||
