Vacuum Suction HD Printing Slotting Die Cutting Machine
Release Time:2021/03/06 13:41:14   Browse:th

Vacuum Suction HD Printing Slotting Die Cutting Machine

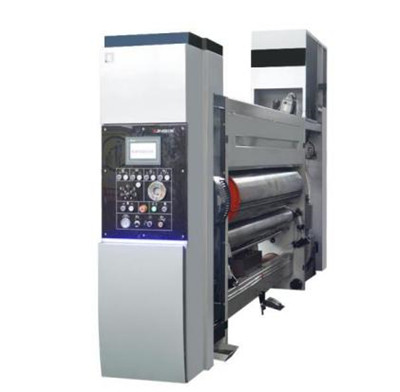

1.Lead Edge Feeding Unit:

Vacuum Suction HD Printing Slotting Die Cutting Machine

It can be set up continuous or skip feeding cardboard.(Have counter).
Lead feeder increased suction flow rate, feed more smoothly and accurately. Frequency conversion adjust vacuum and airflow, to fit for the board size.
Formfeed roller have double glue, maintain inner lining soft and rigid outer, flexibility and ensure that the surface wear-resisting. Reduce the cardboard to be compressed.

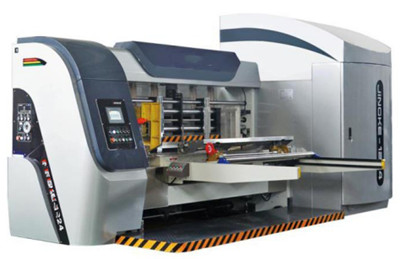

 2.Printiong Unit:

Vacuum Suction HD Printing Slotting Die Cutting Machine
♦Scroll hanging version, lock device left and right sides, let hang version registration more accurately.
♦The anilox roller includes a pneumatic clutch to keep same speed to the host when the unit is printing. When the unit is not printed, the anilox roller can be stopped, reducing the failure of the operation of the cots and roller damage, and cleaning don’t have to keep the same speed with the host.

♦Printing phase, computer and electric digital control.

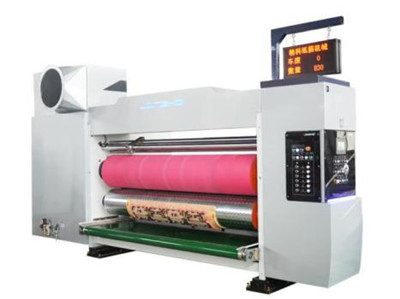

3.Drying Unit:

Vacuum Suction HD Printing Slotting Die Cutting Machine
♦Infrared drying system, drying bracket pneumatic lifting, easy to maintain during the printing process.
♦Infrared heating system make the temperature rise fast and stable ,every dryer unit ,the power is about 36-40kw .

♦The temperature is controlled constantly ,and it is heated in section in order to save the heating power .the customer can turn off some heating power if it is not necessary .

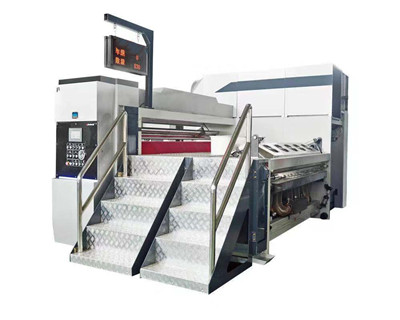

4.Slotting Unit:

Vacuum Suction HD Printing Slotting Die Cutting Machine
♦Slotting phase and box height, computer and electric digital control.
♦Preload crease wheel, slot knife traverse position computer and electric digital control.
♦The interval of slotting knife shaft is control by computer and electric digital.
♦ Preload, creasing gap adjustment adopt computer and electric digital control.

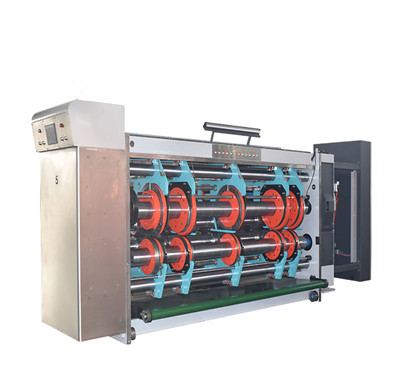

5.Die Cutting Unit:

Vacuum Suction HD Printing Slotting Die Cutting Machine
♦ Rubber roller mechanical spiral commutation 50mm move about horizontal structure.
♦Die-cutter phase, computer and electric digital control.
♦Horizontal phase, computer and electric digital control, range±10mm.
♦ Rubber roller and die roller gap use computer and electric digital

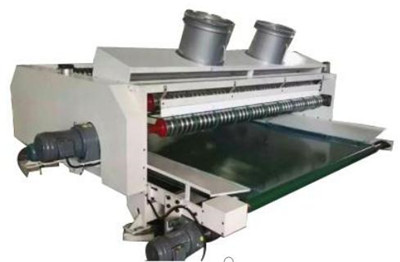

6.Vibration Unit:

Vacuum Suction HD Printing Slotting Die Cutting Machine

♦ Mainly used in rotary die-cutting machine processed cardboard clastic cleaning machine, Effectively reduce the waste of human resources before manual cleaning, The carton processing efficiency is higher, the process is more perfect.

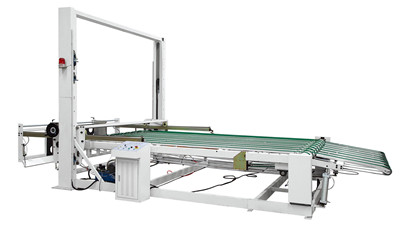

7.Stacking Unit:

Vacuum Suction HD Printing Slotting Die Cutting Machine

♦ Collection platform inclination height to be adjusted with the carton stack height and the elevation motor incorporating electric braking function to keep the platform stable.


Technical Parameters:

Model

920

1224

Max speed(pcs/min)

250

200

Max paper feeding size(mm)

900*2200

1200*2600

Max printing size(mm)

900*2000

1200*2400

Min paper feeding size(mm)

280*680

350*680

Max depth of slotting(mm)

230

300

Die cutting precision(mm)

≤±1.5mm

Printing precision(mm)

≤±0.4mm4 color

Printing plate thickness(mm)

7.2

Paper thickness(mm)

2.5-12

Min slotting interval

Positive

160X160X160X160

Reverse

300X60X300X60
